RICO magnetic drive centrifugal pumps

Close-coupled, compact, GMP Series pumps are the efficient and dependable choice for medium-flow, medium-head applications. The GMP Series pump features sub-ANSI sizes for efficient lower flow applications. Affordable, high-performance Rico pumps give you higher efficiency with lower horsepower and a lower total cost of ownership.

• Standard Sic bearing system for enhanced dry running capability
• Straddle-mounted, double bearing design reduces shaft load and bearing wear when compared to our competitors’ typical cantilevered, overhung designs
• Slip-fit construction allows easy maintenance and on-site repairs with no special tools required
• Large internal flow path handles solids: 1% at 500μ; 8% at 100μ.
• Close-coupled configuration eliminates coupling and motor alignment issues
• No expensive mechanical seals; eliminates costly shutdowns and pump repair, which helps eliminate “Reportable Release” issues
• Handles toxic, noxious and corrosive liquids for leak-free pumping with increased safety to plant personnel and the environment

GMP SERIES
Features	Seal less Magnetic Drive
Model:(GMP220 GMP221 GMP542 GMP421 GMP541 GMP222 GMP420)
Hz	60Hz	50Hz
TDH Max.	58m	40m
Capacity Max.	0.6m3 /min	0.55m3 /min
Temperature max.	150°C(280°C)	150°C(280°C)
Specific Gravity Max.	2.0	2.0
Viscosity Max.	300cp	300cp
BORE	50/40A~25/20A	50/40A~25/20A
Flange rating	ANSI-150Lb/JIS10K-RF	ANSI-150Lb/JIS10K-RF
Impeller type	Close	Close
Motor type	0.75KW~5.5KW	0.75KW~5.5KW
R.P.M.	3600RPM.1800RPM	3000RPM.1500RPM
Casing	SUS316	SUS316

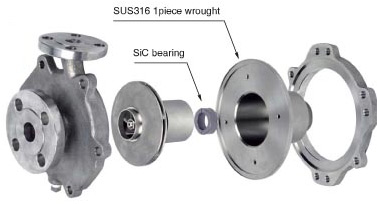

PARTS
(BUSHING.THRUST RING.SHAFT)
MAGNET COUPLING
