 FEATURES
|
| |
»GMPL Series pumps are the efficient and dependable choice for medium to high head and high |
| |
flow applications。 |
| |
»No leak due to seal-less design, Handles toxic, noxious and corrosive liquids for leak-free |
| |
pumping with increased safety to plant personnel and the environment。 |
| |
»SUS316 construction provides excellent corrosion resistance, heat-resistant and pressure- |
| |
resistant。 |
| |
»Simple disassembly and assembly. Easy manintenance。 |
| |
»Close-coupled configuration eliminates coupling and motor alignment issues。 |
| |
»Straddle-mounted, double bearing design reduces shaft load and bearing wear,extended service |
| |
life。 |
| |
»High-performance Rico pumps give you higher efficiency with lower horsepower and a lower |
| |
total cost of ownership。 |
| |
»GMHL high temperature resistant up to 280 ℃, GMLL resistant to low temperatures up to
|
| |
-80℃。 |
| |
»Large internal flow path handles solids: 5% at 500μ; 8% at 100μ。 |
SERIES ( PDF FILE) |

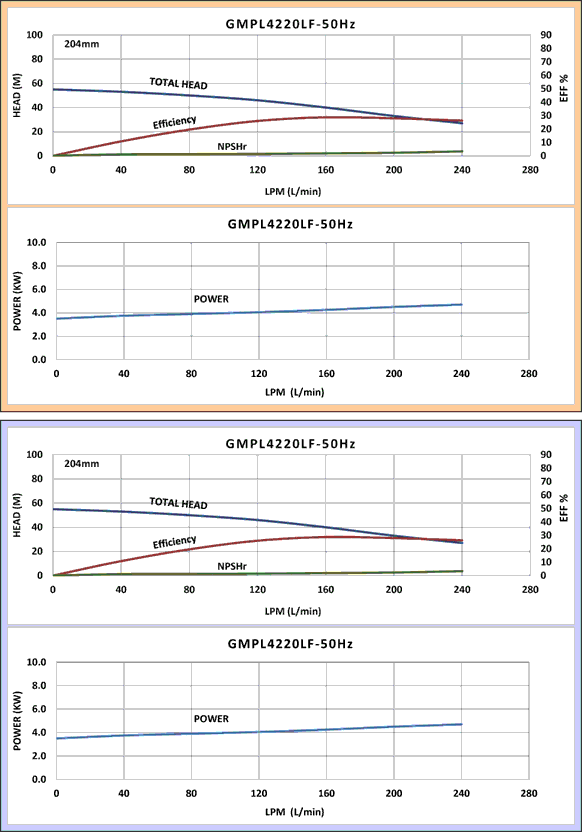

| PERFORMANCE CURVE(PDF FILES GMPL4220LF．GMPL4220．GMPL5225LF．GMPL8415．GMPL8420．GMPL8515) |
| DIMENSIONS (PDF FILE) |

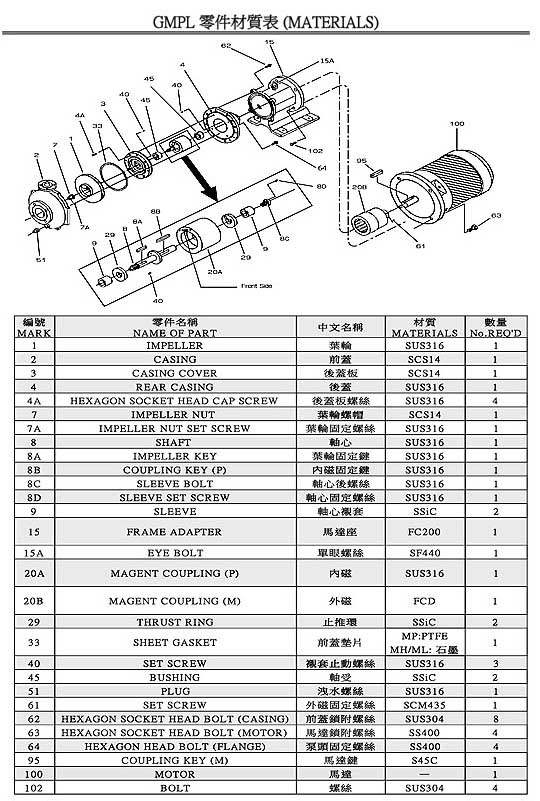

| MATERIALS OF PART LIST (PDF FILE) |
| Typical usage |
| »Semiconductor，liquid crystal display，medicine，food |
| »petrochemical industry，general industry and various machines |
GMPL PUMP TYPE |
PUMP TYPE
|
GMPL / GMLL / GMHL |
STANDARD
TDH Max. (M)
Capacity Max.(L/min) |
60Hz
133
1400 |
50Hz
92
1200 |
Temperature Max.
Temperature Min. |
150℃ / 150℃ / 280℃
-30℃ / -80℃ / -30℃ |
Specific Gravity Max.
Viscosity Max. |
2
330 cp |
Design pressure |
13 kgf/cm2 |
Bore (Suc/Dis) |
40/25A – 80/40A
JIS 10K / ANSI150
|
Impeller Type |
Closed |
Motor Type |
Horiaontal 2P , 4P
3.7kW – 18.5kW |
Casing |
SCS14 (SUS316) |
Gasket |
PTFE / GRAPHITE / GRAPHITE |
Bearing
Sleeve |
SSiC
SSiC |
Magnet |
R.earth Nd / R.earth Nd / SmCo |
Models fo Pump |
6 |
Type of Bearing |
1 |
